Description
- ▶Technical data: Power Feed X-Axis, Voltage: 220V, 50/60Hz, Current: 2.8A, Max. Torque: 155kg/cm, 135lb/in, R.P.M.: 0-210
- ▶Power supply switch and reset switch:The right side of power switch is “ON”. The left side is OFF. Red light will show when machine is on.The red round button on right side is reset switch. Reset button will jump up to cut off the power if the machine overloads. The operator must reduce cutting load, then press reset switch to continue operating
- ▶Feed knob and rapid button:Rotate feed knob after power is on. Turn left for left side feeding and vice versa.The button in the middle is “rapid button”. Tool will travel rapidly to left side if you keep pressing the button. Release to make power table feed will back to normal speed
- ▶Speed adjust knob:Speed can be adjust according to operator’s requirement, ranging from 0-9.Jog switch:Normally, jog switch should be at “FEED” position. For jog movement, just switch to "0" position. Kept holding the switch until it travels to requires position
- ▶100% Satisfaction Guarantee: If you have any questions about the product or if you are not satisfied with the product, please feel free to contact us. Then we will offer you the best solution

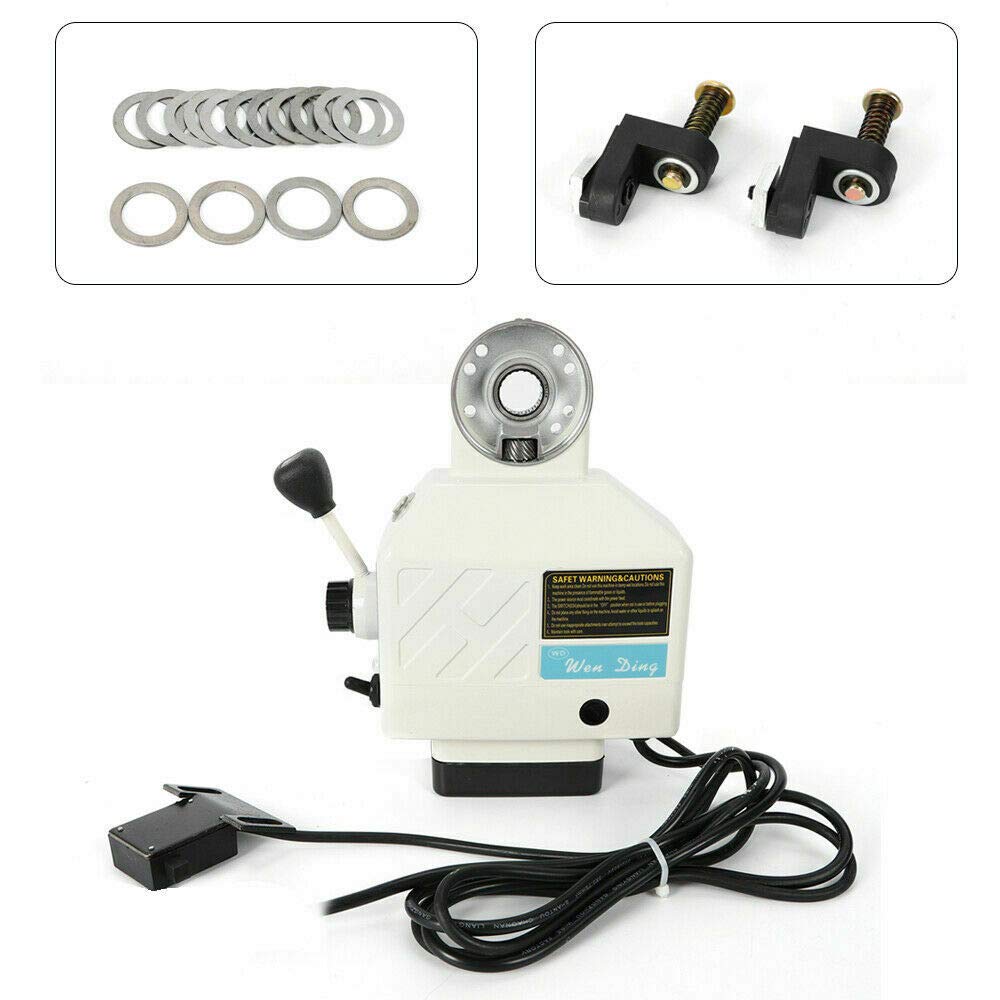

Power Milling APF-260 X-Axis Milling Machine Power Feeder Milling Table Adjustable Speed Automatic Tool Fix Stand Set 220V X-Axis Power Feed Drive Feed Kit for Milling
