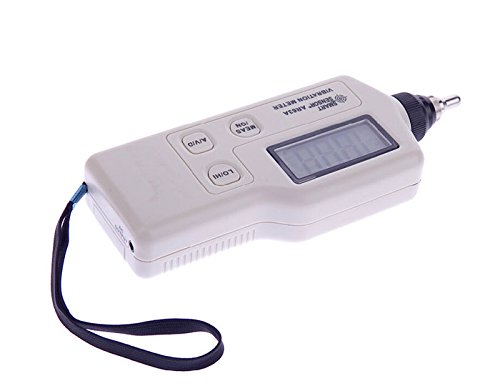

Smart Sensor Portable Vibration Meter AS63A Vibration Pen Vibration Analyzer

Description

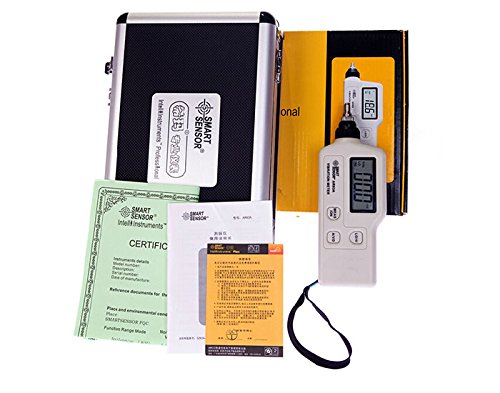

Features Vibration meter(also called also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration.It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc. SPECIFICATION Vibration Pickup Piezoelectric Ceramic Accelerometer(shear-type) Acceleration 0.1~199.9m/s2 Velocity 0.1~199.9m/s Displacement 0.001~1.999mm Acceleration Frequency Range 10HZ~1KHZ(LO) 1KHZ~15KHZ(HI) Velocity Frequency Range 10HZ~1KHZ Displacement Frequency Range 10HZ~1KHZ Accuracy ±10%H±2digits Singnal Output AC Output Maximum Locking --- Temperature Measurement --- ℃℉ Selection --- PACKING INFORMATION Power 9V battery Product Net Weight 147g Product Size 184*67*30mm Packing Gift box Standard Quantity Per Carton 40PCS Standard Carton Size 52.0*40.0*49.0cm Standard Carton Gross Weight 12.5KG
